ENGINEERED PANEL – 3 LAYERS

This three layer panel can be offered with two different type of construction:

100% OAK

This is the top product made of three layers oak solid lamellas to give the panel maximum stability for all purposes.

OAK FACED PLYWOOD CORE

This panel is a cheaper alternative to the 100% Oak.
It’s a strong and stable alternative, made with two external layers solid strips oak and a core made with birch plywood.

Features

Thickness 20 mm (other thicknesses on request)
Layer 4/3,3 mm
Width 1210 mm
Stave 50 mm +
Length 2350/2150/1850 mm

Quality

Can be combined on request

A/B

Attractive grain; few pin knots; light to medium colour variation.

K

Sound knots, small to medium knots allowed; colour variation allowed; up to 10% sapwood; mineral streakers allowed.

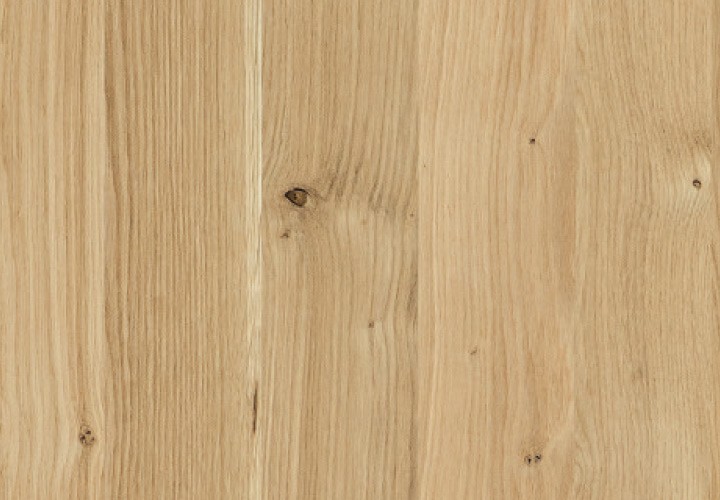

R

Knots, cracks and splits allowed; colour variation allowed, up to 20% sapwood; mineral streaks allowed.

RR

Sapwood, woodworm holes, centre, cracks permitted.

X

Sapwood and discoloration permitted.
